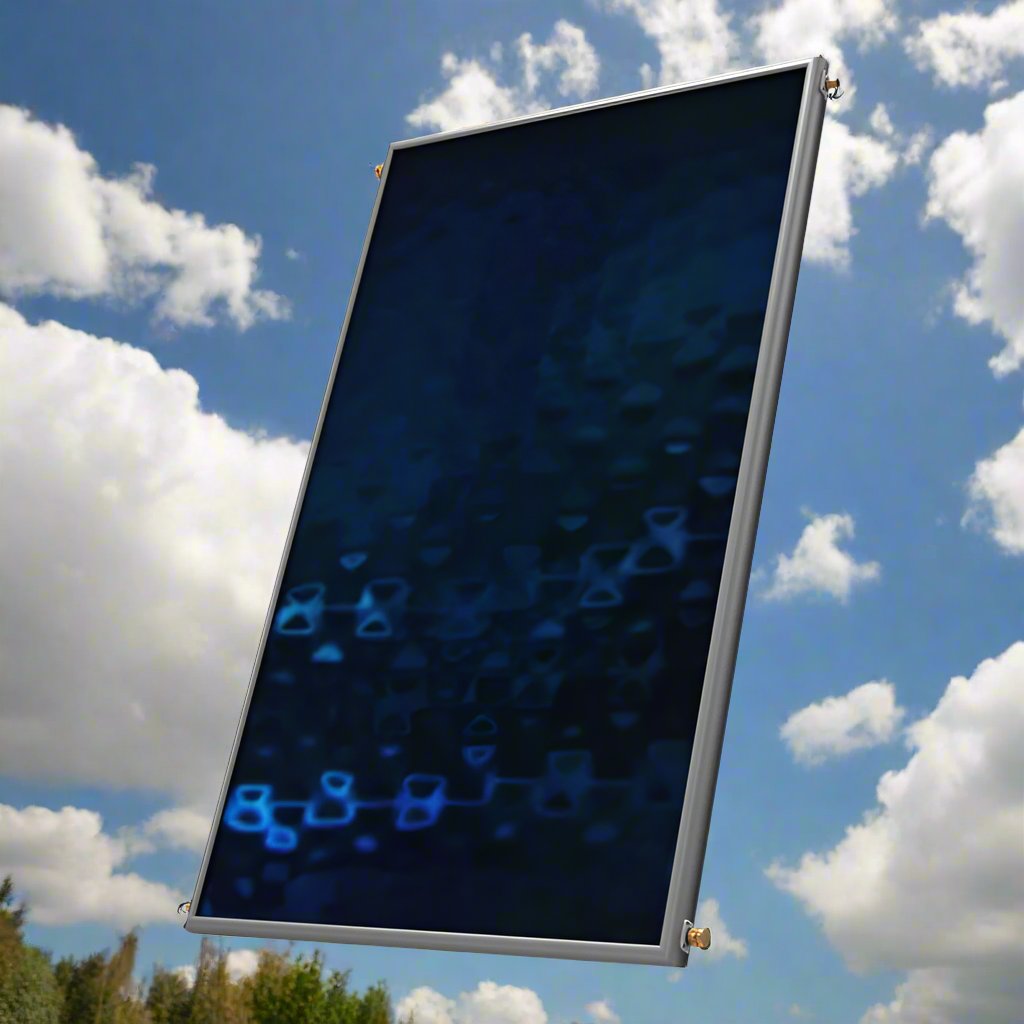

Solar Sonne Collector Phaethon from 2,4 to 6m²

1. PVD Technology: Featuring a specially processed Mirotherm Control absorber with Physical Vapour Deposition (PVD) technology, Phaeton collectors ensure optimal solar absorption of over 96%, with high resistance to corrosion.

2. Copper Hydraulic Skeleton: Constructed with copper pipes for superior heat transfer properties, the laser-welded connection maximizes energy efficiency and performance.

3. Robust Frame: With a 1.4mm thick aluminum profile and internal angular screw connections, Phaeton collectors guarantee durability and sturdiness. The aluminum back sheet ensures excellent sealing and stability.

4. Low Iron Tempered Glass: The 3.2mm thick low iron tempered glass offers minimal reflectivity and enhanced solar absorption, along with hailstorm and impact resistance.

5. Effective Insulation: High-density glass wool insulation minimizes thermal losses and optimizes heat retention for efficient operation.

6. Thermal Expansion Protection: Specially designed elastic pads prevent thermal bridges and absorb expansions and contractions, ensuring longevity and efficiency.

Cloudy Offer ! With the purchase of a solar water heater that includes two collectors as standard, you can enjoy a special offer: when purchasing an extra Collector Atlas or Phaethon, it's available at half price. Similarly, if your system normally includes three collectors, the fourth collector is also available at a 50% discount.

• Achieve exceptional efficiency without the drawbacks of overheating

• Extend the lifespan of your thermal fluid for long-term performance

• Unparalleled resistance to high temperatures and humidity

• Minimize stress on collector materials for enhanced durability

• Significantly reduce stagnation temperature by up to 40°C

• Mitigate absorber deformation for optimal functionality.

• Warranty: 5 years

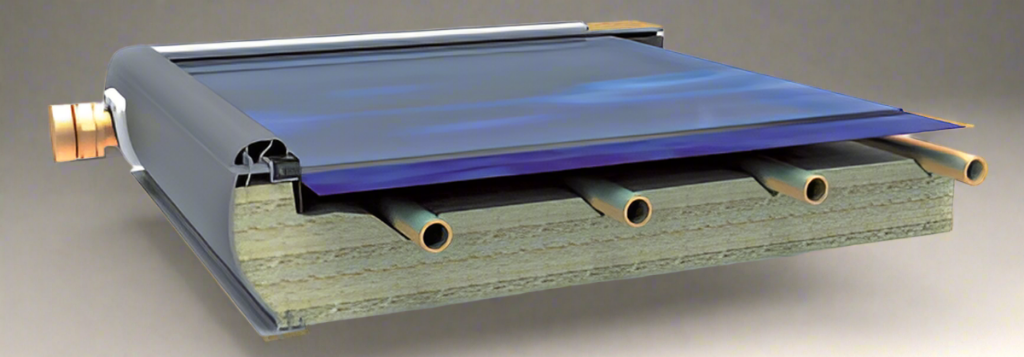

Solar Collector Specifications:

1. Frame: 1.5mm aluminum profile with electrostatic color paint RAL 9006.
2. Internal Sealing: EPDM rubber.
3. Aluminum Clasp: With electrostatic color paint RAL9006.
4. Internal Corner Aluminum Link: Ensures optimal implementation and framework stability.
5. Back of the Collector: Aluminum, 0.5mm thickness.
6. Absorber Header: Copper tube, diameter 22mm.
7. Absorber Riser: Copper tube, diameter 8mm.
8. Absorber: Aluminum full plate with selective surface, 0.4mm thickness.
9. Thermal Insulation: Glass wool, density d = 20kg/m3, 30mm thickness, and side thermal insulation.
10. Security Tempered Glass: 3.2mm thickness, high permeability 17, UV transmission 0.94.

These specifications ensure top-notch performance and durability for your solar collector.
